[Canon] Android Phone Wired Upload

A data cable connection is the simplest, most stable, and most efficient connection method. By connecting the Android phone and the camera through an OTG data cable, the photos in the camera can be quickly transferred to the UPHOTO cloud.

Supported cameras: 1DX, 1DX2, 1DX3, 5D2, 5D3, 5D4, 5DsR, 6D, 6D2, 60D, 7D, 7D2, R/RP, R5, R6/R62, R7

• Other unlisted Canon cameras are basically also supported, please test them yourself before use.

I. Phone Settings

1. Set the phone to be available after the screen is off.
   • Please refer to Android Settings for Shooting with Screen Off to set up according to your phone brand.
2. OPPO, vivo, and OnePlus phones need to manually turn on the OTG function in the settings; Huawei, Xiaomi, Honor, Samsung and other phones do not need to manually turn on the OTG function.
   • Steps to turn on: Phone Settings → Other Settings or More Settings → OTG or OTG Connection
   • You can also directly search for "OTG" in "Settings"

Note: If the phone's OTG connection is not used for more than 5 minutes (some are 10 minutes), you need to manually turn on the OTG function again.

II. Camera Settings

1. Turn off the camera's WIFI function.
   • Canon 5D4 needs to turn off the FTP function in "Communication settings", and upgrade the camera firmware to the latest version (Ver.1.0.4 and above).

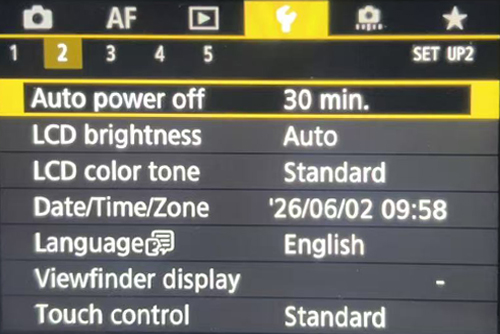

2. Set the camera power to the maximum time to keep the camera always on. As shown below:

3. Set the photo format to JPEG or JPEG+RAW format.
4. Set the camera date and time to the current date and time.

III. Connect Phone to Camera

1. Plug the data cable into the camera.
   • If it is a data cable purchased from UPHOTO, plug the red end of the data cable into the camera.
   • If the data cable is a switch cable, make sure the switch is turned on.
2. Plug the data cable into the phone.

• Purchase data cables and phone brackets: Purchase in the "Purchase Service" section of the UPHOTO official website or WeChat Mini Program (I am a photographer).

IV. Shoot and Upload

1. Open the "UPHOTO Live APP" and log in successfully.
2. An authorization request for "UPHOTO Live" will pop up in the APP. Check the default option and click the "OK" button. As shown below:

• If you accidentally click "Cancel", please unplug the data cable on the phone side and plug it in again.

Note: After the phone and camera are connected, if an authorization request for "Non-UPHOTO" (such as Gallery, Album, etc.) pops up on the phone, please click the "Cancel" button. As shown below:

3. In the APP album list, select the album you want to shoot, click the "Upload Now" button, and select "Wired Transmission".

Note: When using the "UPHOTO Live APP" for the first time, authorization requests for "Ignore battery optimization" and "Access photos and media content on your device" will pop up, please click "Allow". As shown below:

4. After selecting the photo upload group, enter the "Shoot and Upload" interface. The upper left corner shows a green "Camera Connected", indicating that the phone has successfully connected to the camera, and you can shoot and upload photos.

Demo Video

Instructions for wired connection between Canon camera and Android phone (R6 as an example)

Common Problem Solving

1. Still cannot connect to the camera after multiple attempts.
   • Check if the data cable is plugged in backwards. If it is a data cable purchased from UPHOTO, plug the red end into the camera; if the data cable is a switch cable, try the switch a few more times to ensure it is turned on.
   • On the phone screen, swipe down from the top. Under normal circumstances, it will display "Connected to xxxx camera"; if not, the data cable may be damaged. Try again with a different data cable.
   • After confirming that the data cable is not damaged, while the data cable is connected, clear all APPs running in the background of the phone, then open the "UPHOTO Live APP" and enter the "Shoot and Upload" interface. Click the "Manual Authorization" button at the bottom of the interface, wait for 5 seconds, and an authorization request will pop up.
   • You can try to "Clear all camera settings" or "Restore Factory Settings" in the camera settings, and then reconnect.
2. The camera is connected successfully, but the APP cannot recognize the photos in the camera
   • Check if the camera's photo format is set to JPEG or JPEG+RAW format.
   • For multi-card slot cameras, set JPEG format photos to be stored on card 1.
   • Format the memory card, take a new photo and try again.
